In the world of commercial and industrial refrigeration, choosing the right refrigerant is crucial for system efficiency, environmental compliance, and operational costs. R134a and R404a represent two of the most widely used refrigerants in different applications, each with distinct characteristics that make them suitable for specific cooling requirements. This comprehensive comparison examines the technical properties, performance metrics, environmental impact, and practical applications of both refrigerants to help HVAC professionals make informed decisions for their refrigeration systems.

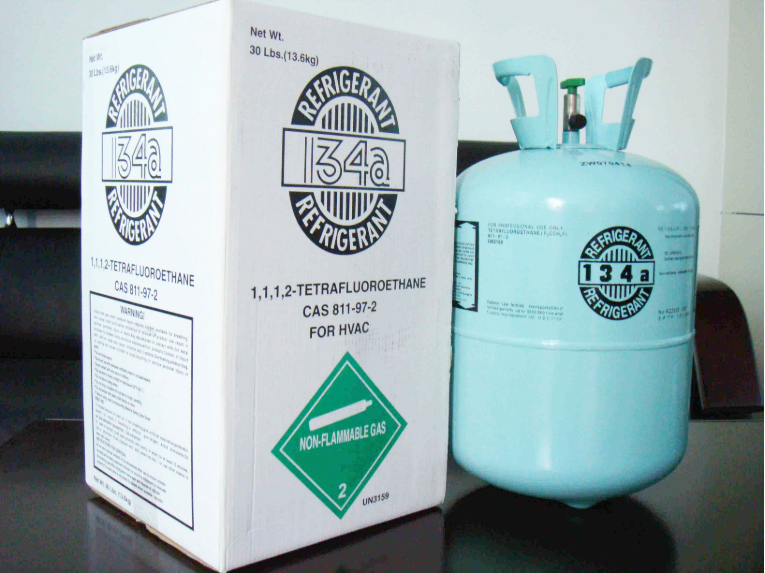

R134a (1,1,1,2-tetrafluoroethane) is a hydrofluorocarbon (HFC) refrigerant that has been extensively used in automotive air conditioning and medium-temperature commercial refrigeration since the phase-out of CFCs. With a molecular weight of 102.03 g/mol and a boiling point of -26.3°C (-15.3°F), R134a offers excellent thermodynamic properties for single-stage refrigeration systems. Its chemical stability and non-toxic nature make it safe for use in occupied spaces, while its zero ozone depletion potential (ODP) initially made it an environmentally preferred alternative to older refrigerants.
Property | R134a | R404a |
---|---|---|
Molecular Weight (g/mol) | 102.03 | 97.6 |
Boiling Point (°C) | -26.3 | -46.5 |
Critical Temperature (°C) | 101.1 | 72.1 |
Global Warming Potential (GWP) | 1,430 | 3,922 |
Ozone Depletion Potential | 0 | 0 |
R404a is a ternary zeotropic blend consisting of R125 (44%), R143a (52%), and R134a (4%), designed specifically for low and medium-temperature commercial refrigeration applications. This refrigerant blend was formulated to replace R502 and R22 in supermarket refrigeration systems, offering superior performance in low-temperature applications such as frozen food displays and cold storage warehouses. The lower boiling point of -46.5°C (-51.7°F) makes R404a particularly effective for applications requiring temperatures below -18°C (0°F), though its significantly higher Global Warming Potential (GWP) of 3,922 has led to increased regulatory scrutiny and phase-down requirements in many regions.
The performance characteristics of R134a and R404a vary significantly depending on the application temperature range and system design. R134a demonstrates superior energy efficiency in medium-temperature applications, typically operating in the range of -10°C to +10°C (14°F to 50°F), making it ideal for fresh food refrigeration, beverage coolers, and automotive air conditioning systems. Its higher critical temperature of 101.1°C allows for better heat rejection in high-ambient conditions, resulting in improved coefficient of performance (COP) and reduced energy consumption compared to many alternative refrigerants in this temperature range.
R404a excels in low-temperature commercial refrigeration applications where consistent performance below -18°C (0°F) is required. Its formulation as a near-azeotropic blend minimizes temperature glide during phase change, ensuring stable operation in complex supermarket refrigeration systems with multiple evaporators. The refrigerant's capacity and efficiency characteristics make it particularly suitable for frozen food display cases, ice cream storage, blast freezers, and cold storage warehouses. However, the trade-off for this low-temperature performance is higher energy consumption compared to R134a in medium-temperature applications and significantly higher environmental impact due to its elevated GWP rating.
The environmental implications of refrigerant choice have become increasingly important as global regulations target high-GWP substances to combat climate change. R134a, with a GWP of 1,430, faces regulatory pressure under the European F-Gas Regulation, the Kigali Amendment to the Montreal Protocol, and various national phase-down schedules. Many countries have implemented restrictions on the use of high-GWP refrigerants in new equipment, with some applications already prohibited or subject to significant quotas. The refrigerant industry is transitioning toward lower-GWP alternatives such as R1234yf and R1234ze(E) for applications traditionally served by R134a.
EU F-Gas Regulation: Prohibits the use of refrigerants with GWP ≥ 2,500 in new commercial refrigeration equipment from 2020, directly affecting R404a applications. R134a faces restrictions in automotive air conditioning (2017) and some commercial refrigeration sectors.
Global Phase-Down: The Kigali Amendment requires HFC consumption reduction of 80-85% by 2047 in developed countries, accelerating the transition to low-GWP alternatives.
The sustainability landscape for R404a is particularly challenging due to its extremely high GWP of 3,922, making it one of the first targets for regulatory phase-out in commercial refrigeration. Many major retailers and food service operators have already committed to eliminating R404a from their operations, transitioning to natural refrigerants (CO2, ammonia, hydrocarbons) or lower-GWP synthetic alternatives like R448A, R449A, or R452A. For R134a applications, the transition path typically involves moving to R1234yf (GWP = 4) in automotive applications or R1234ze(E) (GWP = 6) in stationary commercial refrigeration, though these alternatives may require system modifications and careful consideration of performance characteristics, flammability classifications, and cost implications for long-term operation.
The economic comparison between R134a and R404a extends beyond initial refrigerant costs to encompass energy efficiency, maintenance requirements, regulatory compliance costs, and future availability. R134a typically offers lower total cost of ownership in medium-temperature applications due to superior energy efficiency, which can result in 5-15% lower operating costs compared to alternative refrigerants in appropriate applications. However, the increasing regulatory pressure and potential future restrictions create uncertainty in pricing and availability, with some regions already experiencing supply constraints and price volatility due to quota systems and phase-down requirements.
When evaluating the lifecycle costs of R404a versus R134a systems, operators must consider the refrigerant's operational efficiency, maintenance requirements, regulatory compliance costs, and end-of-life considerations. R404a systems often require more frequent servicing due to higher operating pressures and temperatures, while the increasing scarcity and regulatory burden drive up both acquisition and disposal costs. The potential need for system retrofits or complete replacements to comply with evolving regulations can significantly impact the total cost of ownership, making it essential to factor in the expected equipment lifespan, local regulatory timelines, and availability of suitable low-GWP alternatives when making refrigerant selection decisions for new installations or major system upgrades.
